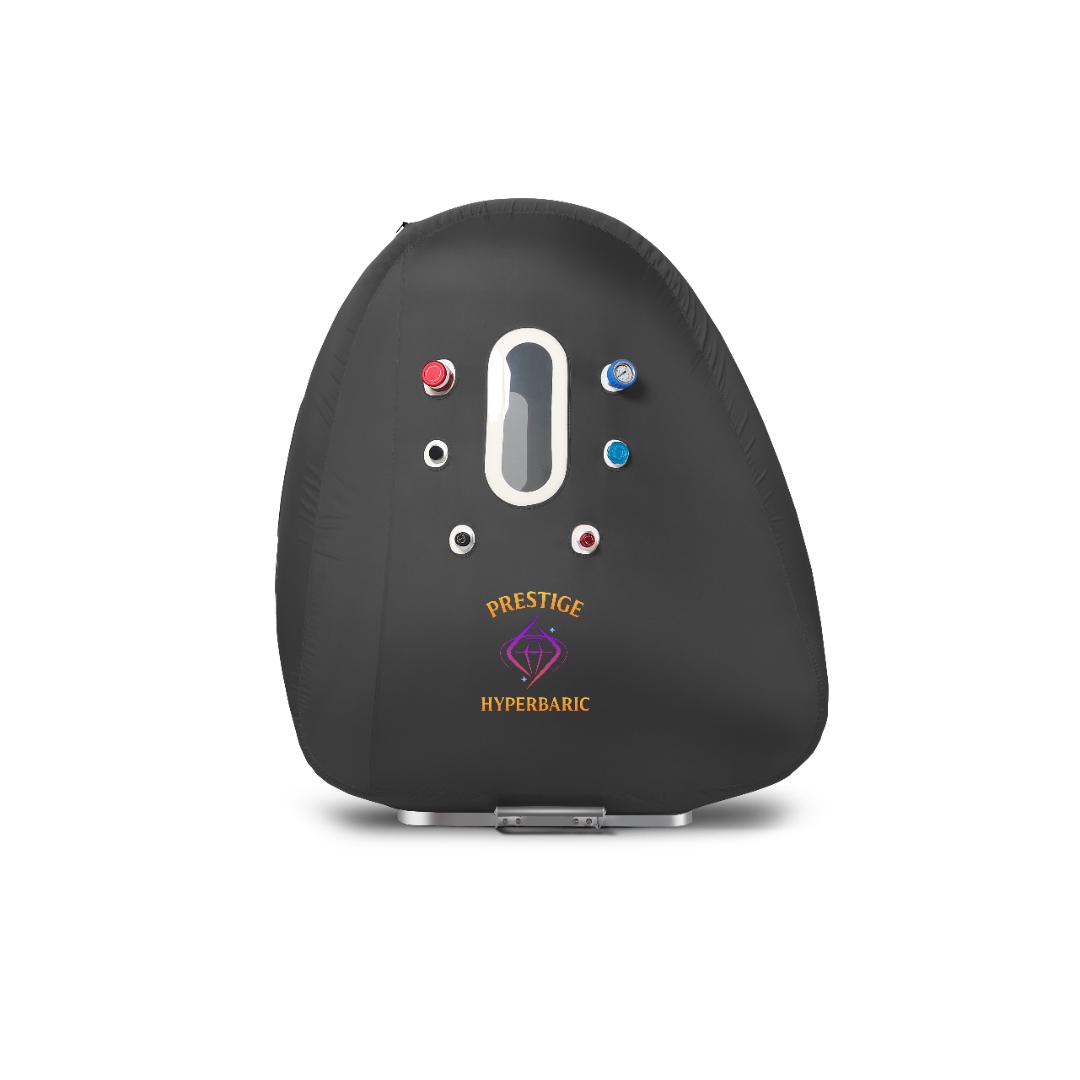

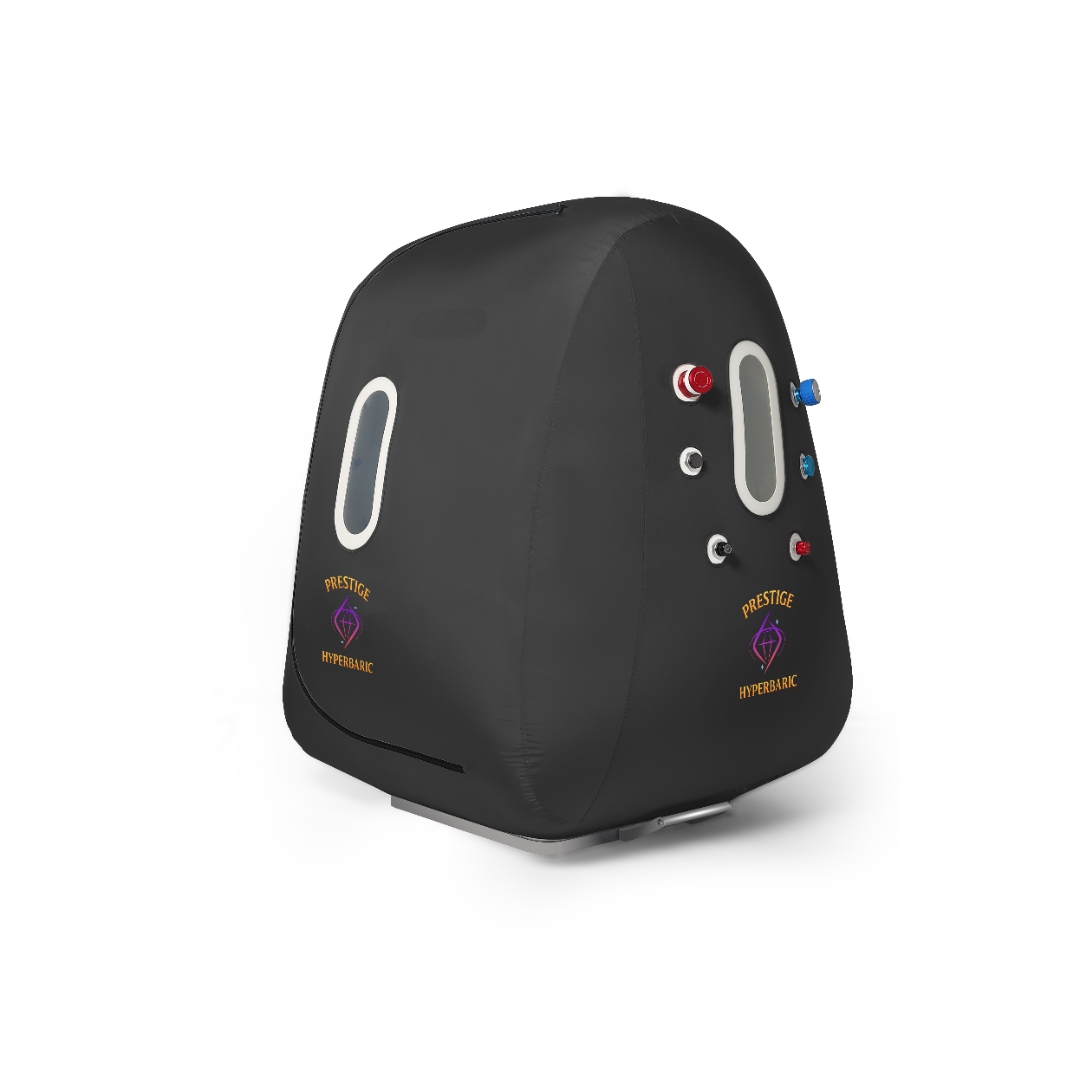

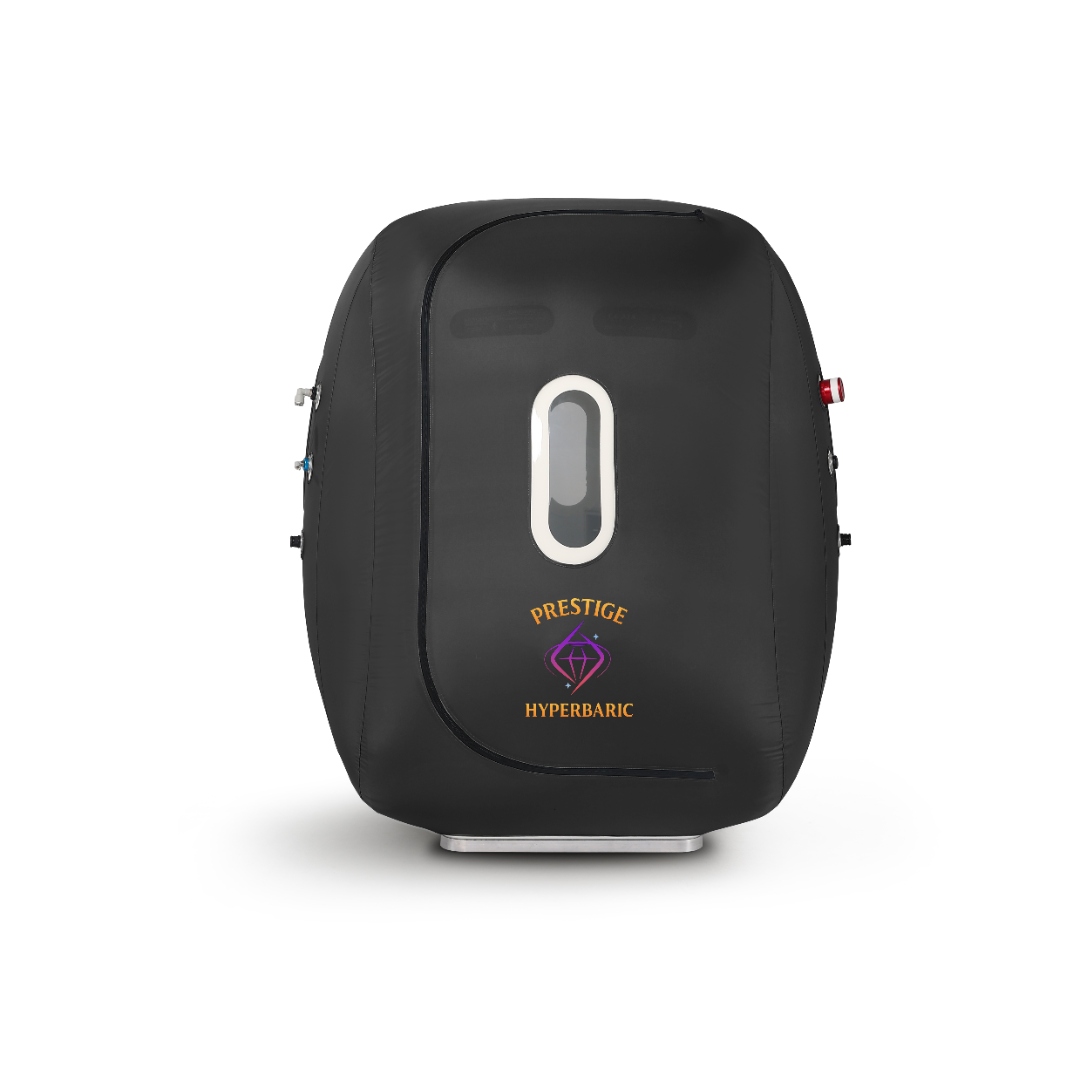

Pavilion of Power
An upright dome softshell chamber with wheelchair roll-in access. Designed for clients with mobility considerations who want serious daily HBOT at home.
Roll in, zip up, and pressurize — no transfer required. The Pavilion of Power's upright dome design provides a roomy interior at adjustable 1.2, 1.3, and 1.4 ATA settings. Includes the same oil-free compressor and 10 LPM oxygen concentrator as the rest of the softshell line, on a standard household outlet.
Every chamber includes a full owner's manual and Prestige support. We gate manual downloads to protect our documentation — request yours above and we'll verify and send it, usually the same day.
Specifications
| Shell Type | Softshell — multi-layer with reinforced seams and high-strength zipper |
|---|---|
| Orientation | Wheelchair / upright dome — roll-in access, no transfer |
| Working Pressure | Adjustable 1.2 / 1.3 / 1.4 ATA |
| Capacity | 1 person (wheelchair user supported) |
| Dimensions | 66 in / 168 cm (L) × 66 in / 168 cm (W) × 76 in / 193 cm (H) |
| Weight | Approx. 200 lb / 91 kg |
| Oxygen Delivery | 10 LPM standard via included 10L concentrator |
| Compressor | Oil-free air compressor (low-noise) — included |
| Power | Standard household outlet |
| Controls | Internal and external pressure gauges, adjustable pressure valve, dual relief valves |
| Warranty | 3-Year OR 1,000 hrs residential · 1-Year OR 1,000 hrs commercial · Extended coverage available ($2,000/year) |
Verify final installation requirements with Prestige Hyperbaric. Some footprint, clearance, and electrical requirements vary by configuration and selected accessories.
What's Included
- Oil-free air compressor
- 10L oxygen concentrator
- Cooling / dehumidification module
- High-grade air filters with spare set
- Power cable and air/oxygen hoses
- Quick-start guide and safety card
Safety & Comfort Features
- Wheelchair roll-in entry — no transfer required
- Upright dome shape with roomy interior
- Dual relief valves — primary and emergency over-pressure protection
- Multi-layer reinforced shell with heat-sealed seams
- Visual pressure and airflow indicators (interior and exterior)
- Power-failure auto-depressurization
- Large transparent panoramic viewing window
- Interior LED lighting
- Quiet, low-noise operation
- Cotton-forward clothing guidance to minimize static
Compatible Hyperbaric Chamber Addons
Common upgrades and accessories for the Pavilion of Power. Final compatibility and pricing confirmed at quote.
HBOT-safe red & near-infrared light with a flexible mount, configured for safe in-chamber use.
View Details →Doubles oxygen flow from 10 to 20 LPM. With non-rebreather mask, supports up to 95% FiO₂.
Conductive earthing accessories for use inside the chamber. Layer grounding into every session.
Precision analyzer for verifying delivered O₂ percentage at the mask or in ambient air.
Extends coverage beyond the standard base warranty (3-year residential or 1-year commercial, either capped at 1,000 hours of use). Extended coverage is calendar-year only — no hour cap while active.
Scheduled check-ups and priority service to keep the chamber in peak condition.
See the full Hyperbaric Chamber Addons catalog for additional options.
Delivery & Installation
Delivery and install options are selectable when you order. Our in-house team coordinates white-glove delivery, professional installation, and post-install orientation. Service is exclusively available to Prestige Hyperbaric clients.
Regulatory & Wellness Use Notice
Softshell hyperbaric chambers are FDA cleared at 1.3 ATA for the treatment of altitude sickness. Operation above 1.3 ATA — including this chamber's higher-pressure settings — is considered off-label and is not FDA-approved. Prestige Hyperbaric is not a medical facility; we do not diagnose, treat, cure, or prevent any disease or condition. See our FDA Disclosure for details.
Talk to a Prestige Hyperbaric specialist
Need help confirming wheelchair clearance or installation requirements? Our team will walk through your space and recommend the right configuration.
OxySafe (Chamber Air Purge System)
A chamber air purge and supply system, engineered per chamber and built to the NFPA 99 Chapter 14 requirements for chamber air. Fits this chamber and every major brand. $4,000 + $100 shipping.
Real Customer Installs
Real photos from 1 customer site — no renders, no stock imagery. Shared with each owner’s permission.
Facility, insurer, or landlord asking about NFPA 99?
This chamber is compatible with our purpose-built OxySafe — a complete, per-chamber system that works to keep the interior atmosphere under the code's fire-safety threshold through the session. Built to order in Holiday, FL.
The Research Behind This Equipment
We keep an independent research library of primary literature with over 400 citations. It is written to inform, not to sell — including the parts of the evidence that are weak or unresolved.
Browse all 11 research chapters →
Cited research, not medical advice. Prestige Hyperbaric is a wellness center, not a medical facility.
