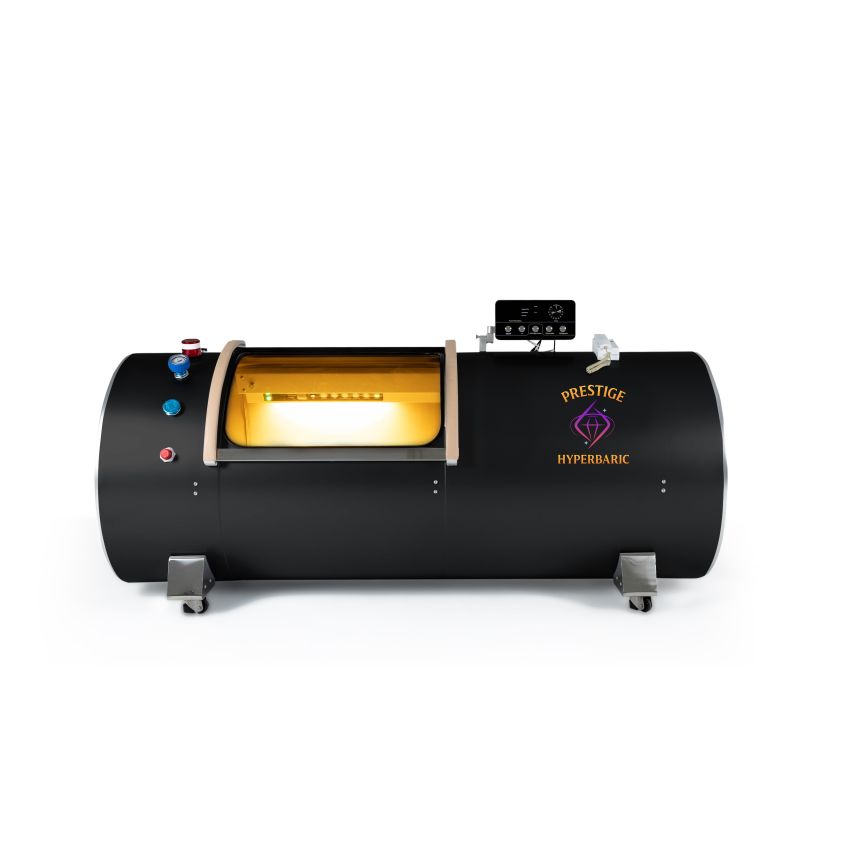

Grand Vessel of Power Rx
Our highest-pressure chamber. A 2.5 ATA hardshell lay-down with dual oxygen concentrators included for advanced HBOT protocols.
The Grand Vessel of Power Rx pushes pressure to a clinical-grade 2.5 ATA. Includes an additional 10 LPM oxygen concentrator out of the box for 20 LPM total output, HD phone intercom, triple-redundant relief valves, and the full hardshell safety suite. A valid physician prescription and documented treatment protocol are required to operate at the highest pressure setting.
Specifications
| Shell Type | Hardshell — precision-welded multi-thickness stainless steel + aluminum ring reinforcement, rated for 2.5 ATA |
|---|---|
| Orientation | Lay-Down |
| Working Pressure | Adjustable 1.3–2.5 ATA |
| Capacity | 1 person (extra-spacious interior) |
| Interior Dimensions | 79 in (L) × 34 in (W) × 60 in (H) |
| Exterior / Footprint | Approx. 90 in × 48 in × 59 in (verify with installer) |
| Weight | Approx. 2,000 lb (varies by options) |
| Oxygen Delivery | 10 LPM standard + additional 10 LPM concentrator included for 20 LPM total; up to 95% FiO₂ with non-rebreather mask |
| Power | 110V AC, 20A dedicated outlet recommended |
| Windows | Aviation-grade dual-layer polycarbonate, head and foot |
| Communication | HD phone intercom |
| Warranty | 3-Year No-Fuss residential / 1-Year commercial · Extended coverage available ($2,000/year) |
Verify final installation requirements with Prestige Hyperbaric. Some footprint, clearance, and electrical requirements vary by configuration and selected accessories.
What's Included
- Hardshell chamber with dual HD control panels
- Two 10 LPM oxygen concentrators (20 LPM total)
- Cooling / dehumidification system
- Anion air purification + nano-water sterilization
- HD phone intercom
- Triple relief valves (primary / backup / emergency)
- Power cable and oxygen hoses
Safety & Comfort Features
- Aviation-grade dual-layer polycarbonate panoramic windows
- Precision-welded multi-thickness stainless steel construction
- Dual digital control panels — interior and exterior with HD displays
- Real-time monitoring of O₂ purity, temperature, and humidity
- Triple relief valves — primary, backup, and emergency
- Smart door safety sensor — operates only when fully sealed
- Automatic gentle depressurization on power loss
- Maintenance-free electric air cooling and dehumidification
- Anion PM2.5 air purification and nano-water sterilization
- Rated for 2.5 ATA continuous operation
- Two oxygen concentrators included from factory
Compatible Hyperbaric Chamber Addons
Common upgrades and accessories for the Grand Vessel of Power Rx. Final compatibility and pricing confirmed at quote.
Conductive earthing accessories for in-chamber use.
Precision analyzer with training for verifying delivered O₂ percentage.
Extends coverage beyond the standard 3-year residential warranty.
Scheduled check-ups and priority service for long-term reliability.
See the full Hyperbaric Chamber Addons catalog for additional options.
Delivery & Installation
Operating the Rx at 2.5 ATA requires a valid physician prescription and documented treatment protocol. Delivery and installation are coordinated through our in-house team. A 110V AC 20A dedicated outlet is recommended at the install location.
Wellness Use Notice
Hardshell chambers operating above 1.3 ATA are typically used in clinical and advanced wellness settings. Prestige Hyperbaric is a wellness center; we do not diagnose, treat, cure, or prevent any disease or condition. See our FDA Disclosure for details.
Talk to a Prestige Hyperbaric specialist
Operating at 2.5 ATA requires prescription and protocol documentation. Our team will walk you through requirements, configurations, and coordinate white-glove delivery and install.
